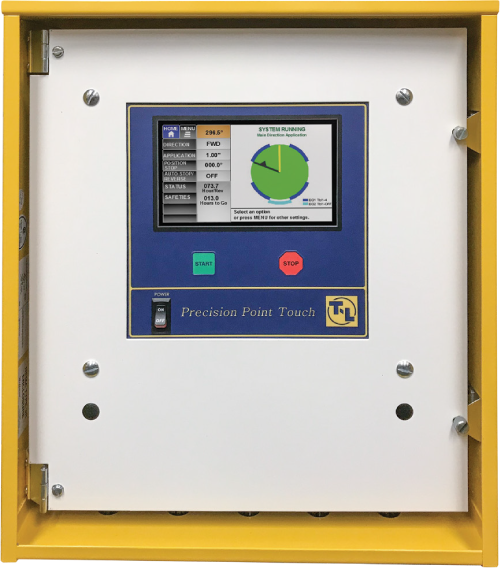

Precision Point Touch Pro
Retrofit to an existing touch system!
New board add-on replaces multiple external systems for simplified and functional pivot operation.
- Load control
- Water pump control
- Water pressure monitoring
- Water-pressure triggered start
- Two additional auxiliary equipment controls
- Detailed safety readouts for easy troubleshooting
- USB datalogging of multiple system parameters
- Telemetry connect-ability
Precision Point Touch Basic
Pivot Control Has Never Been Easier!
- Full Color 7” Graphic Screen
- Touch Screen for easy operation
- Visual Programming
- Two End Gun outputs
- 4 VRI Auxiliary Application Areas Each Direction and up to 120 VRI Steps with Web Telemetry
- Position Stop by Angle
- “Soft Start” ensures slow start speed
- Firmware update via USB
- Safe 24 Volt DC Control
- Closed Loop Speed Control for Maximum Uniformity

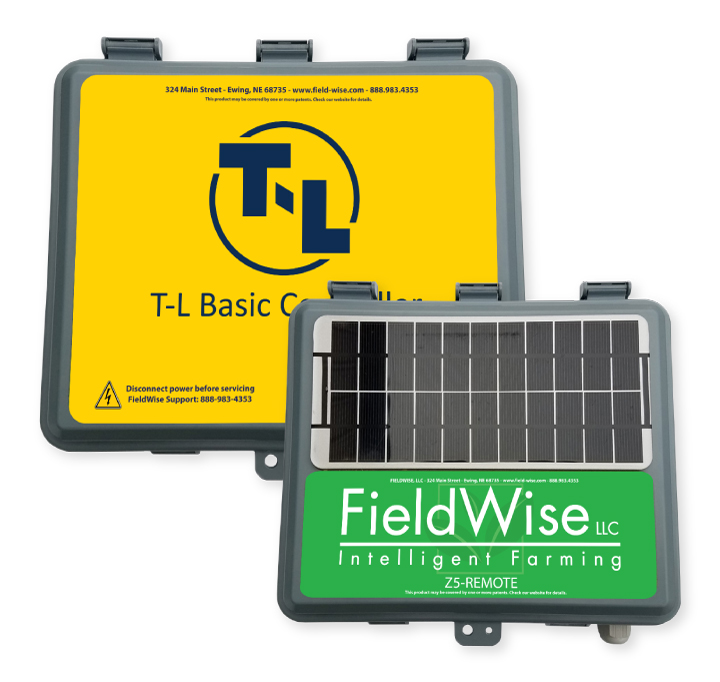

T-L Basic Controller
Monitor and control your T-L with the new and improved T-L Basic Controller. The T-L Basic Controller can be wired for use on electric panels or combustion engines, and can be used with T-L Manual Control, Point Control or Precision Point Control systems.
When the Basic Controller is paired with a solar powered Z5-Remote panel, you can have positioning and pressure readings at the end of the system. The wireless design allows the Basic Controller to be located at the Pivot Point or remote site without the need for span cable or underground wire to communicate to the panel from the end tower! The Z5-Remote also allows you to wire in a pressure transducer or pressure switch to monitor your pressure at the end of the pivot.
Control
- Start
- Stop
- Endgun
- Auxiliary
Monitor
- Direction
- Run
- Speed
- Pressure
- GPS Position
- GPS Stall
- Intelligent Collision Detection

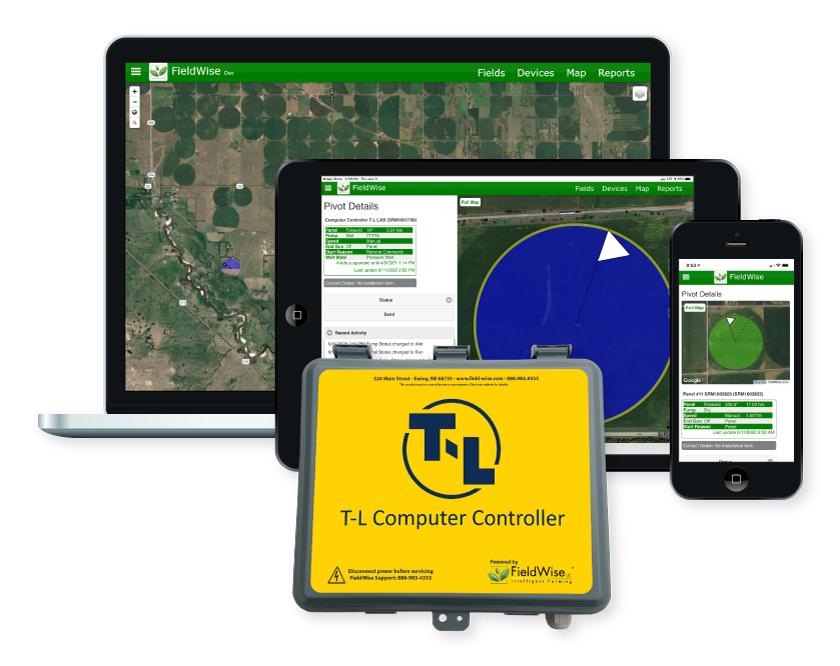

T-L Computer Controller
Get the most out of your T-L PPC III or PPT Touch panel with FieldWise. The FieldWise T-L Computer Controller offers full control of your system remotely through the user-friendly FieldWise Portal. The T-L Computer Controller is easy to wire up and utilizes existing equipment in your panel.
Visit www.field-wise.com. Multiple telemetry options, under ONE website, no matter where you are or what device you log into.
Control
- Start
- Stop
- Endgun
- Speed
- Direction
- Pump
Monitor
- Direction
- Run
- Speed
- Endgun
- Pressure
- GPS Stall
- Intelligent Collision Detection
VRI (VARIABLE RATE IRRIGATION)
Agronomic solutions and advanced irrigation management from T-L Irrigation and CropMetrics.
T-L Irrigation Co., manufacturer of hydrostatically powered pivot and linear irrigation systems, announces VRI application, the latest advancement in web-based irrigation management and services combined with T-L’s family of pivot management control systems.
Developed by CropMetrics, the Precision Irrigation Management services provided, when coupled with the Precision Link and the Precision Point III (PPC III) Control Panel from T-L, allows irrigation management with data- driven VRI prescription.
- Agronomic VRI control is facilitated with CropMetrics Precision Irrigation Management Services.
- New One-Time CropMetrics VRI Rx App Lifetime License
- Improves Energy and Water Use Efficiency
- Increases Yield
Data-driven VRI prescriptions with Cropmetrics, Precision Link, and PPC III, combined with T-L’s hydrostatic design and continuous system movement help improve crop production, and provide highly effective application solutions with precision agronomic irrigation management.

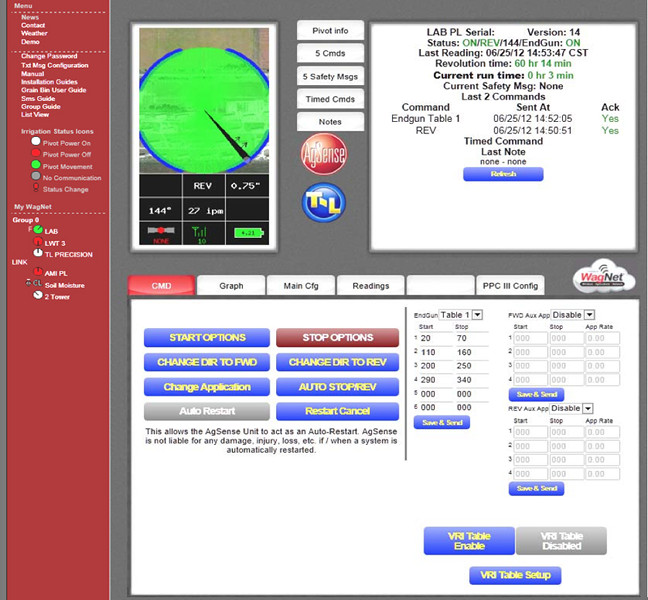

PRECISION LINK
New from T-L Irrigation Co. and Agsense, llc, the Precision link enables web-based pivot control for T-L pivot systems. The Precision Link works in combination with T-L’s Precision Point Control lll (PPClll) to let you manage your pivot with your computer or mobile device and a simple internet connection. Pivot start/stop, direction, application rate and speed, and water pump control are but a few of the features available. VRI (Variable Rate Irrigation) can also be programmed through the website.
Precision Link and the PPCIll, combined with T-L’s hydrostatic design and continuous movement, give you even water distribution, improved crop production, and efficient system management.

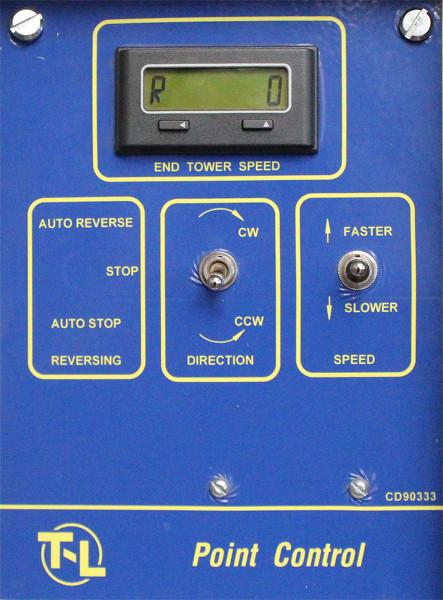

T-L POINT CONTROL
You can control center pivot speed and direction from the pivot point or remote locations other than the end tower with the T-L point control option.

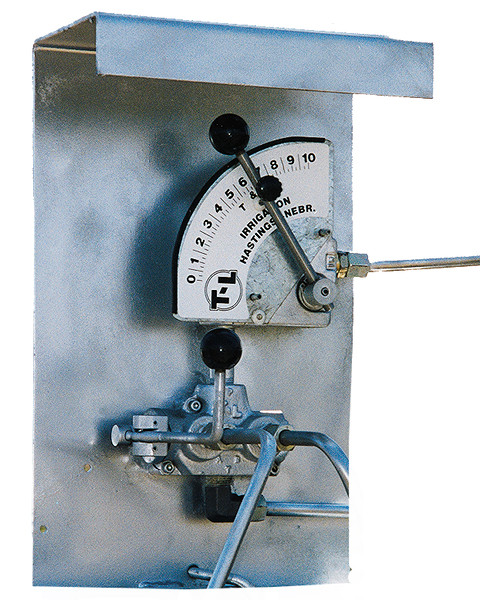

MANUAL SPEED AND DIRECTION CONTROL
You can control center pivot rotational speed and direction with two simple hydraulic valves. With years of field-proven operation, the Manual Speed and Direction Control option is the industry’s simplest, most reliable management tool.

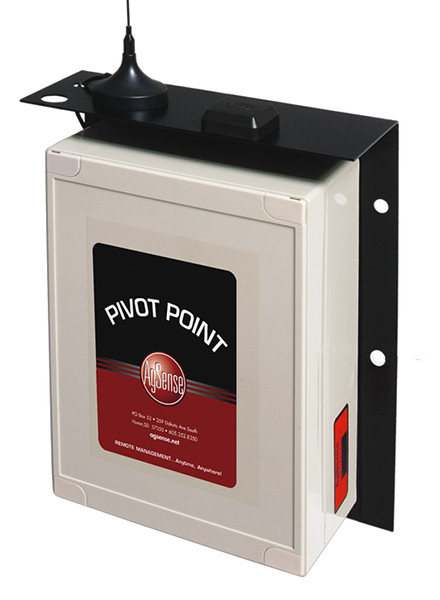

AGSENSE REMOTE PIVOT MANAGEMENT
The AgSense remote management unit mounts on the pivot end tower where a GPS receiver reports the system’s position, speed, and direction of travel. The AgSense uses digital cell phone technology to communicate through the Internet and can be configured to send alerts to a cell phone or e-mail address.
